The Making of Ecuadorian Treehopper Sculpture

I wanted to magnify the wonderment of nature by highlighting the immensely intricate design of nature barely seen to the naked eye if it weren't for macro photography.  Each curve, rivet, and polished surface captures the elegance of the treehopper celebrating the timeless work of art.

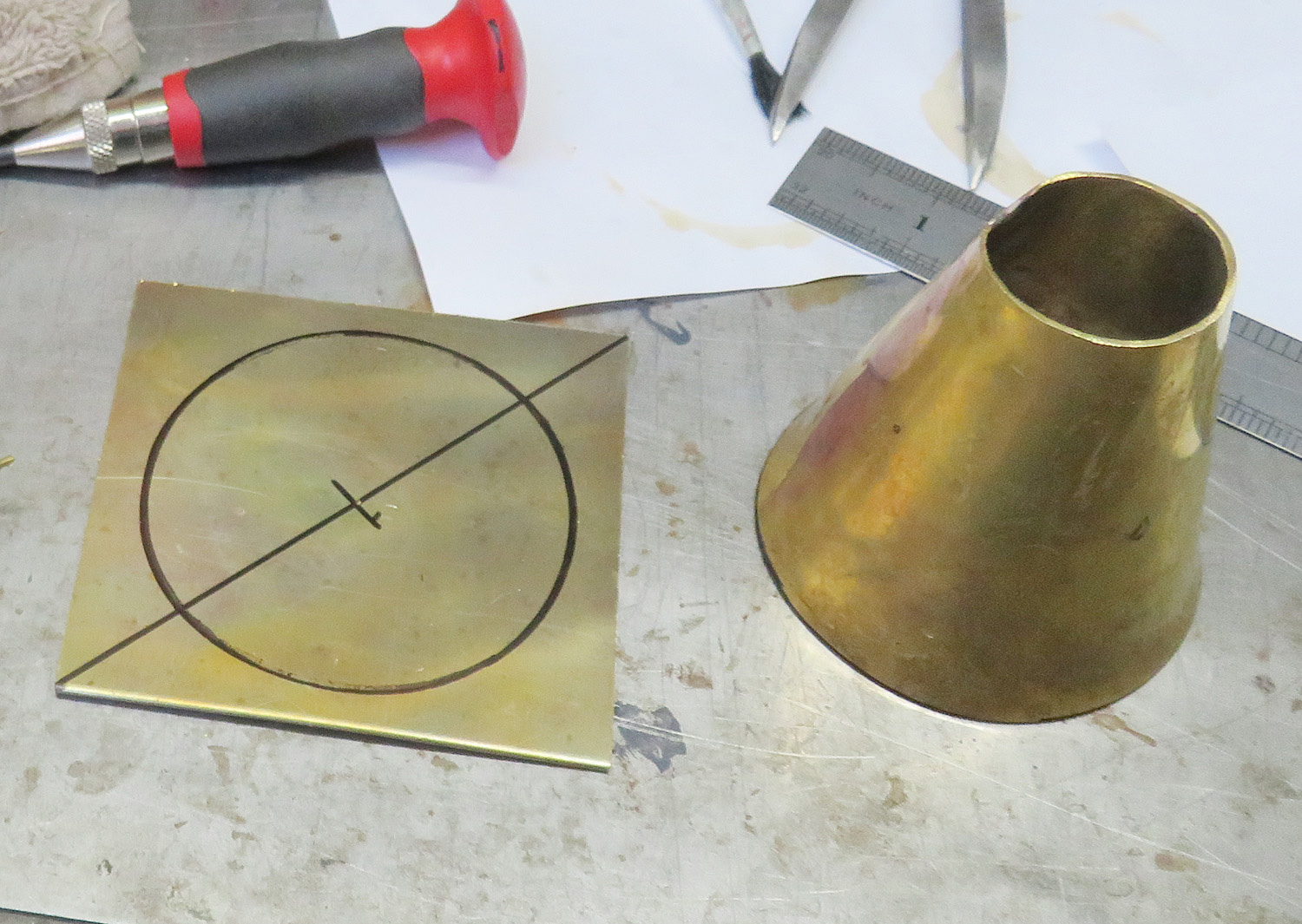

Ecuadorian Treehopper making cone

I work in 1 mm brass and copper sheet and the first thing I do is to replicate the funny cone shape thorax this organism has.

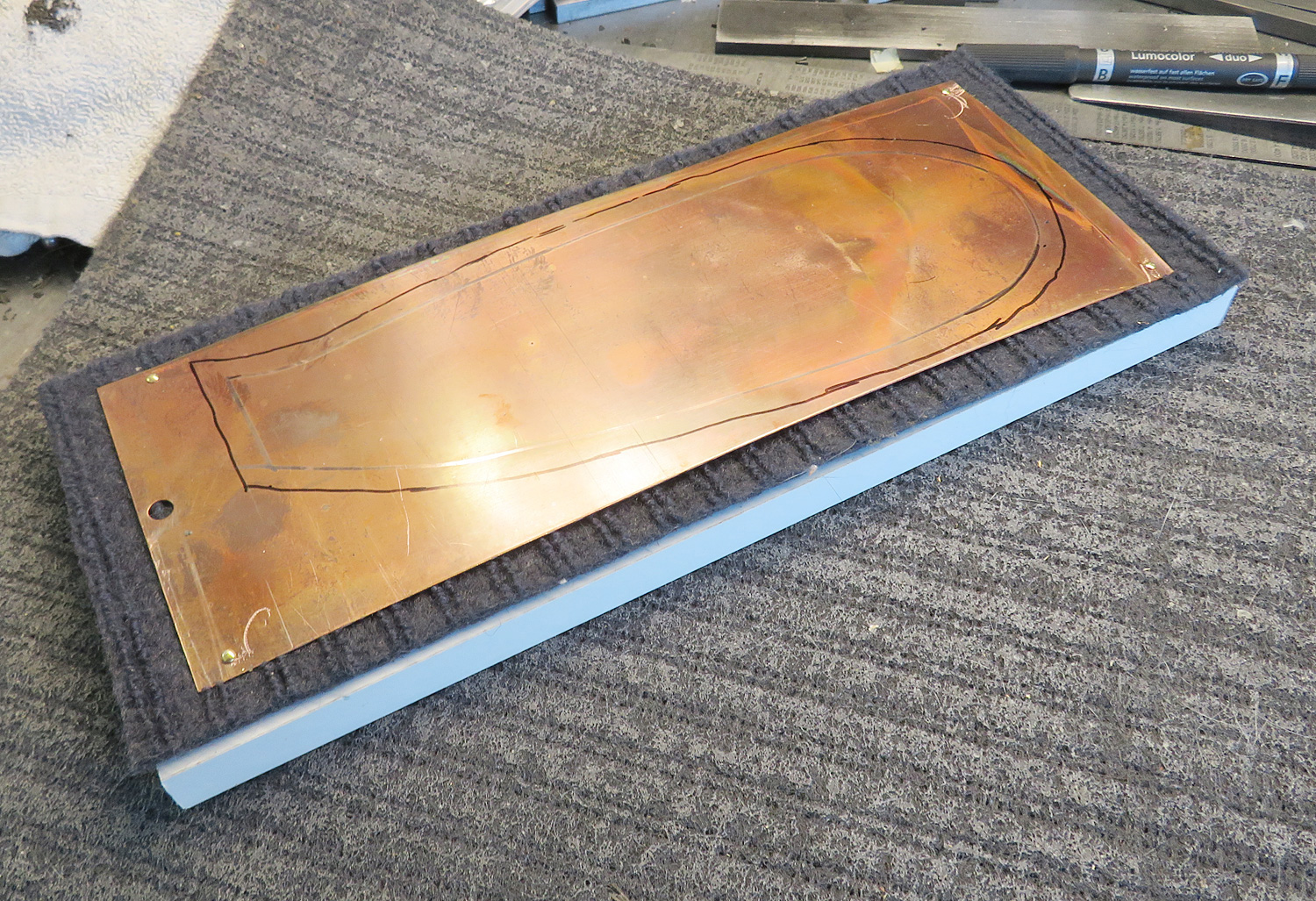

Ecuadorian Treehopper making wings

The wings are made out of 1mm copper sheet. I need to punch a whole lot of raised bubbles into the copper sheet.

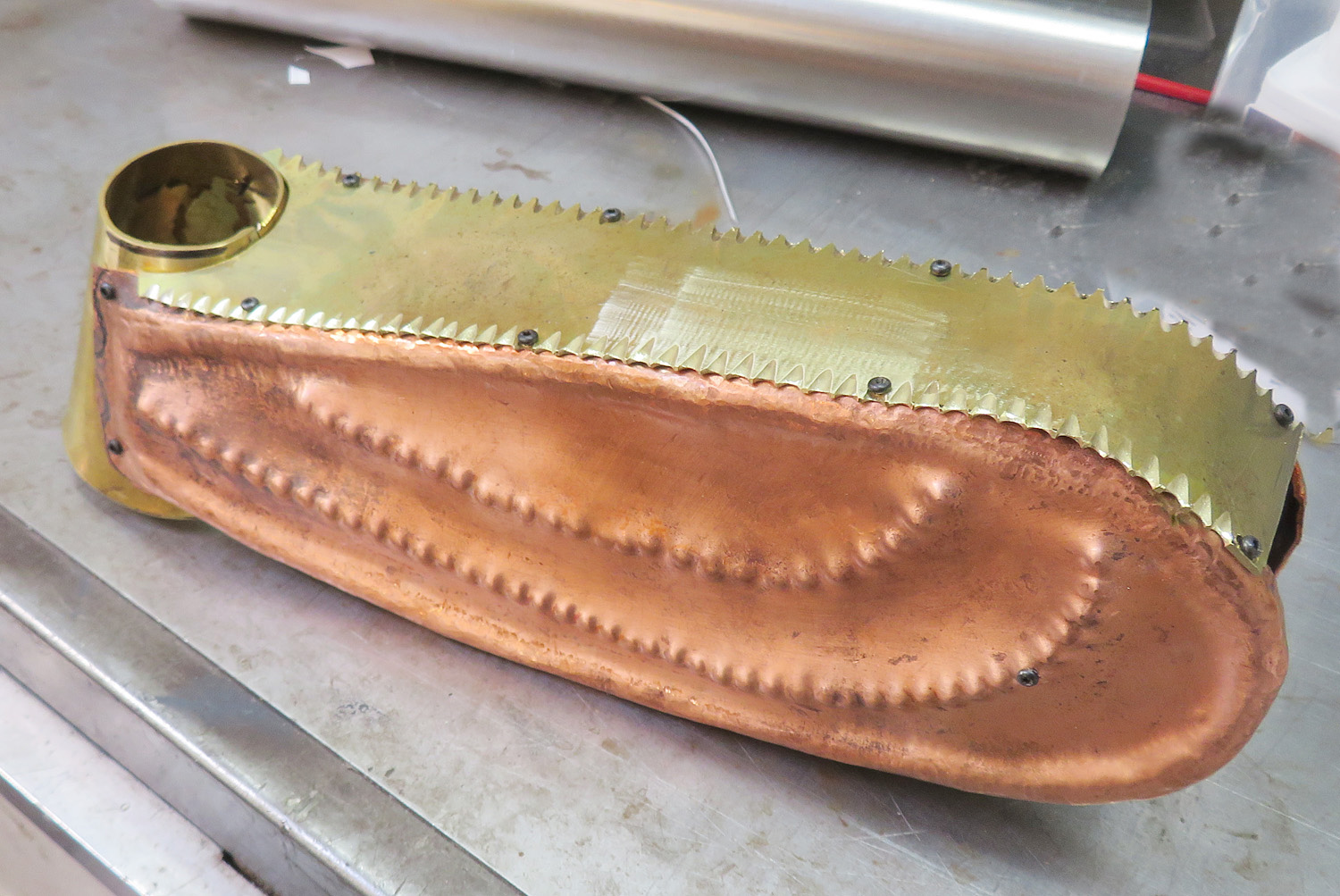

Ecuadorian Treehopper making body

Once I have the two sides bent and punched, I make a top part of the abdomen out of brass.

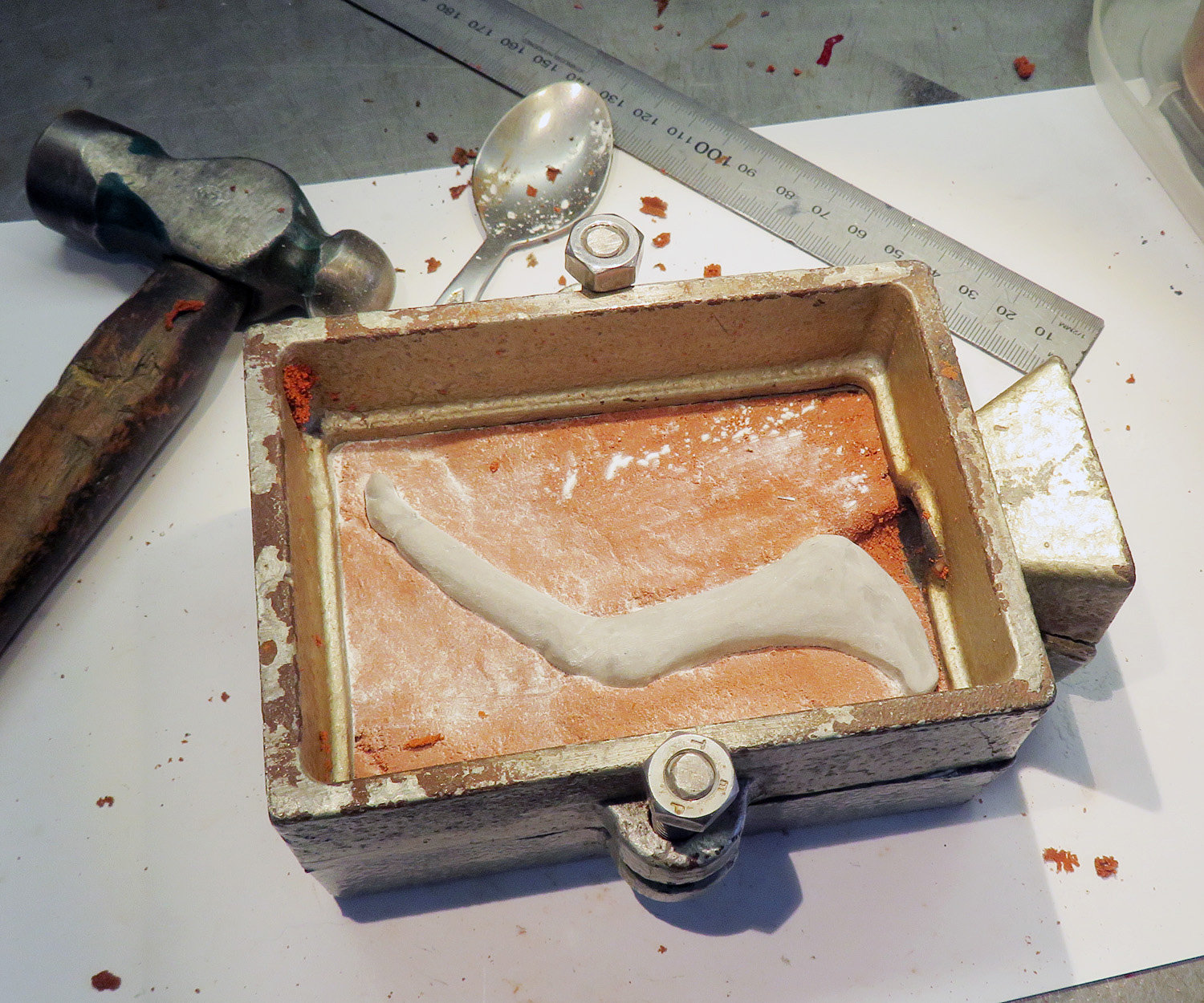

Ecuadorian Treehopper casting the legs

All the legs are first made out of Sculpey, a thermo plastic putty which hardens with heat. They are used for sand casting.

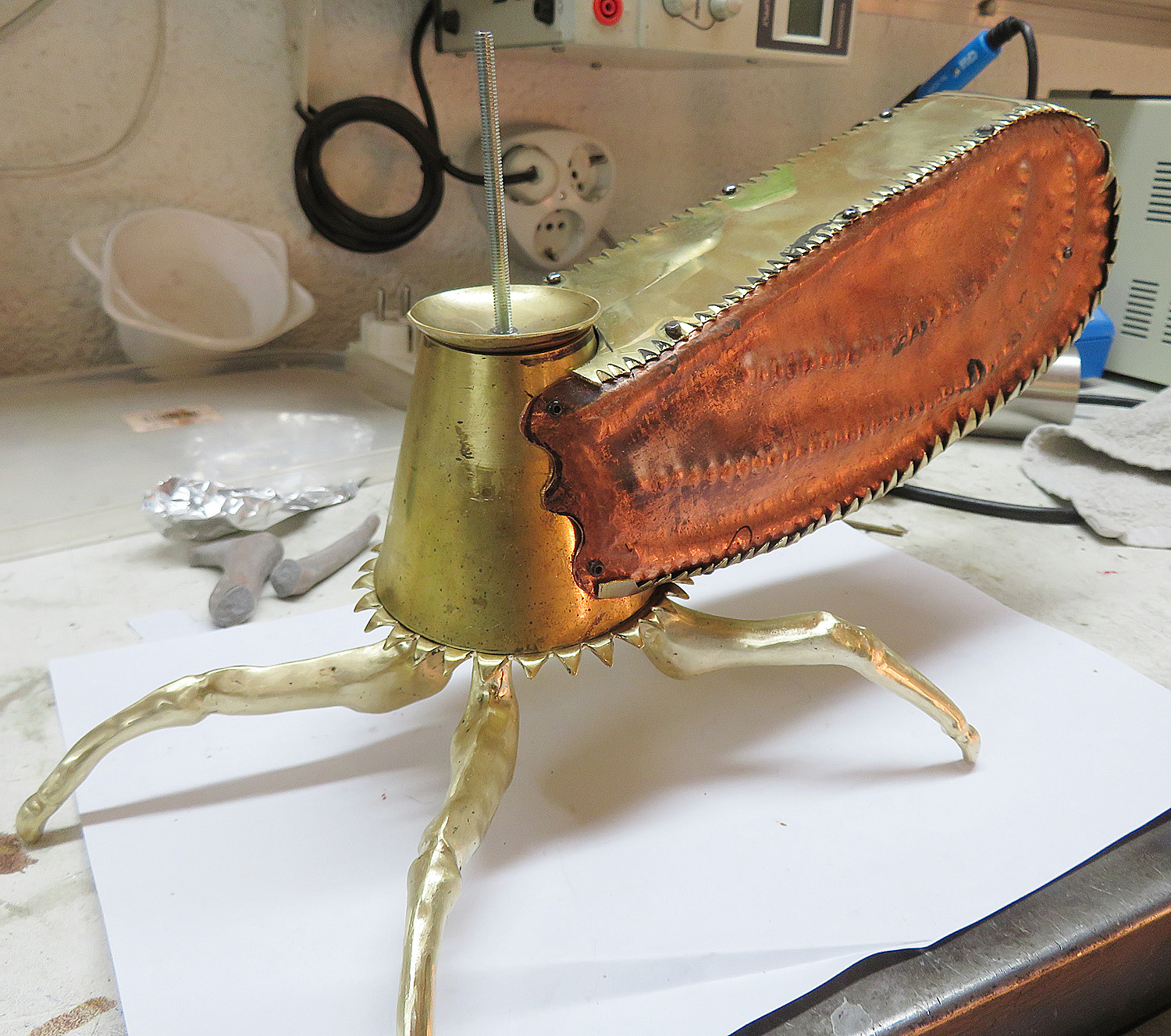

Ecuadorian Treehopper fitting the  legs

Now I assemble the sculpture with placer screw to get the correct 'attitude'.

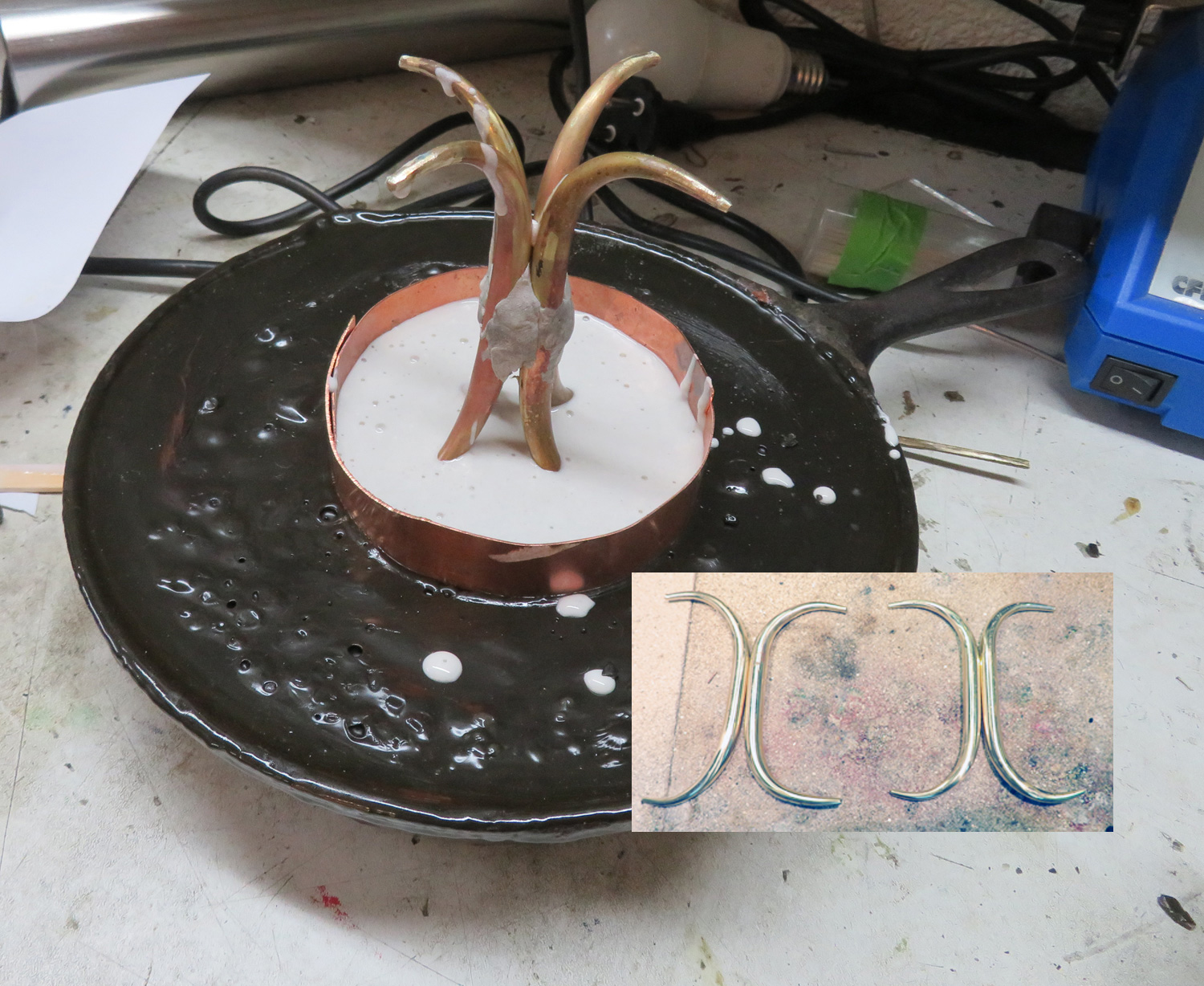

Equadorian Treehopper soldering the neck

The inset is the bent 6 mm bass rods bent to shape and then they are set in plaster. Once the plaster is hard, they can be soldered together. This will form the 'neck' of the sculpture.

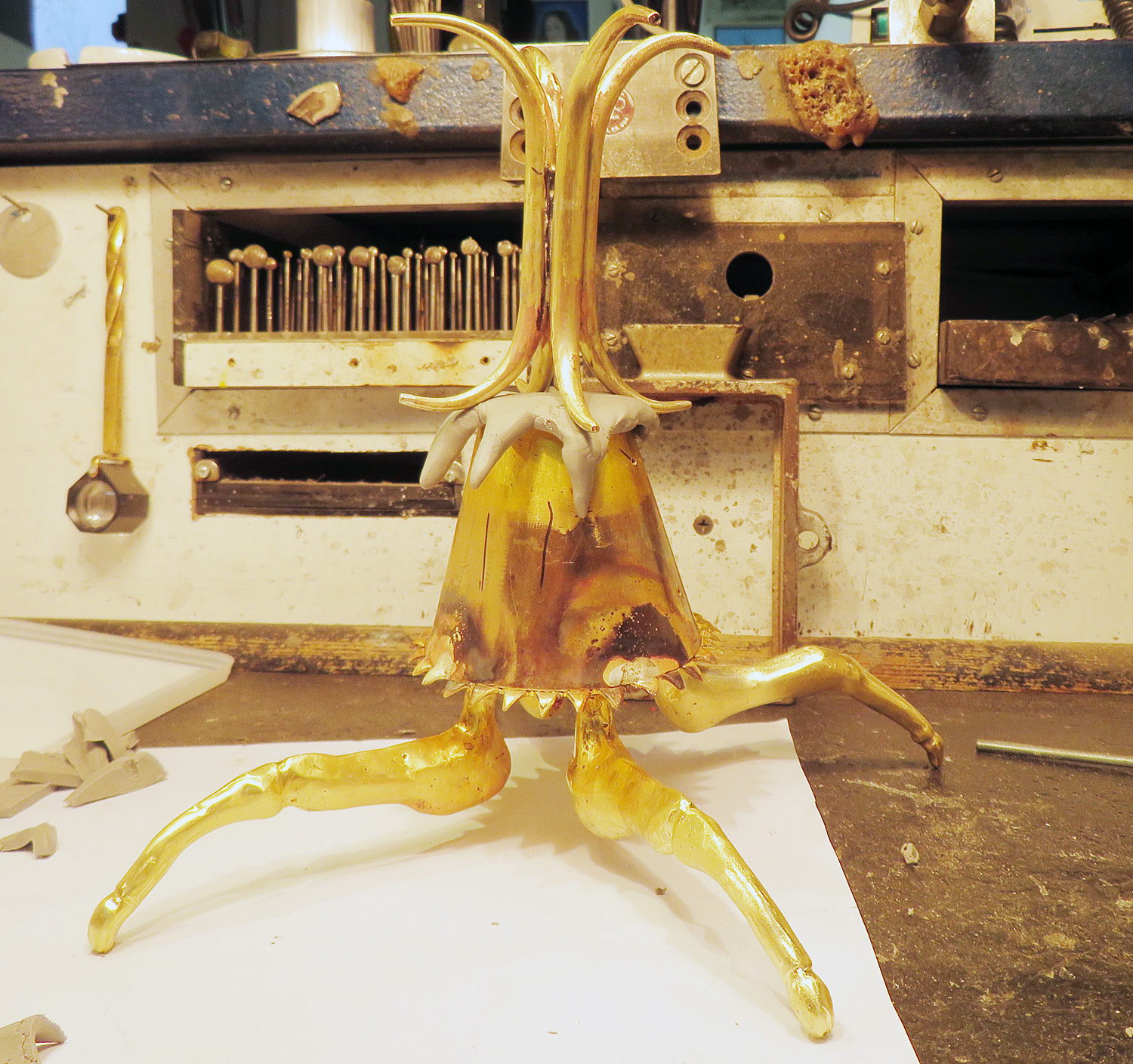

Ecuadorian Treehopper fitting the neck to the body

I make a 'neck top' out of thermo plastic and the sand cast it.

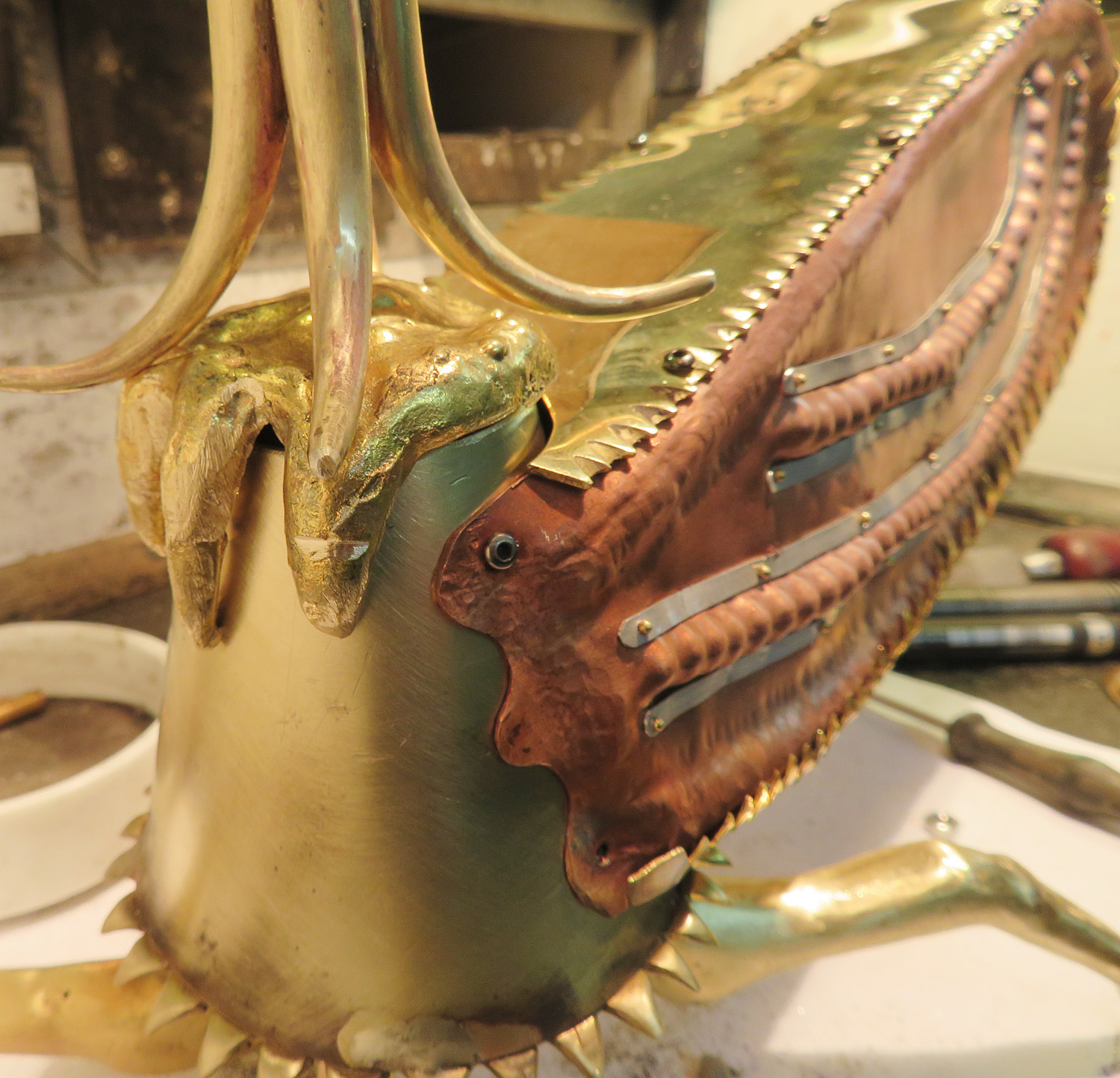

Ecuadorian Treehopper close-up of neck

I make the 'heli top' out of copper and brass.

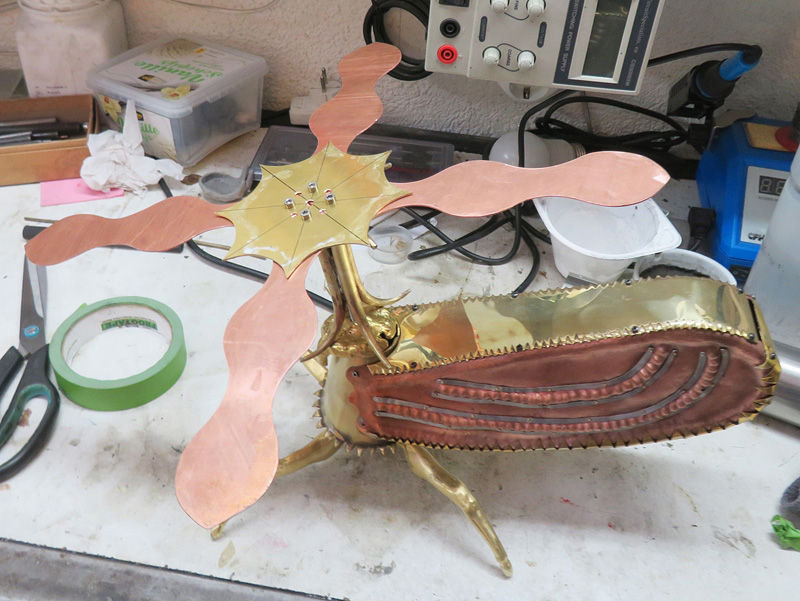

Ecuadorian Treehopper copper helicopter blades

I make the 'heli top' out of copper and brass.

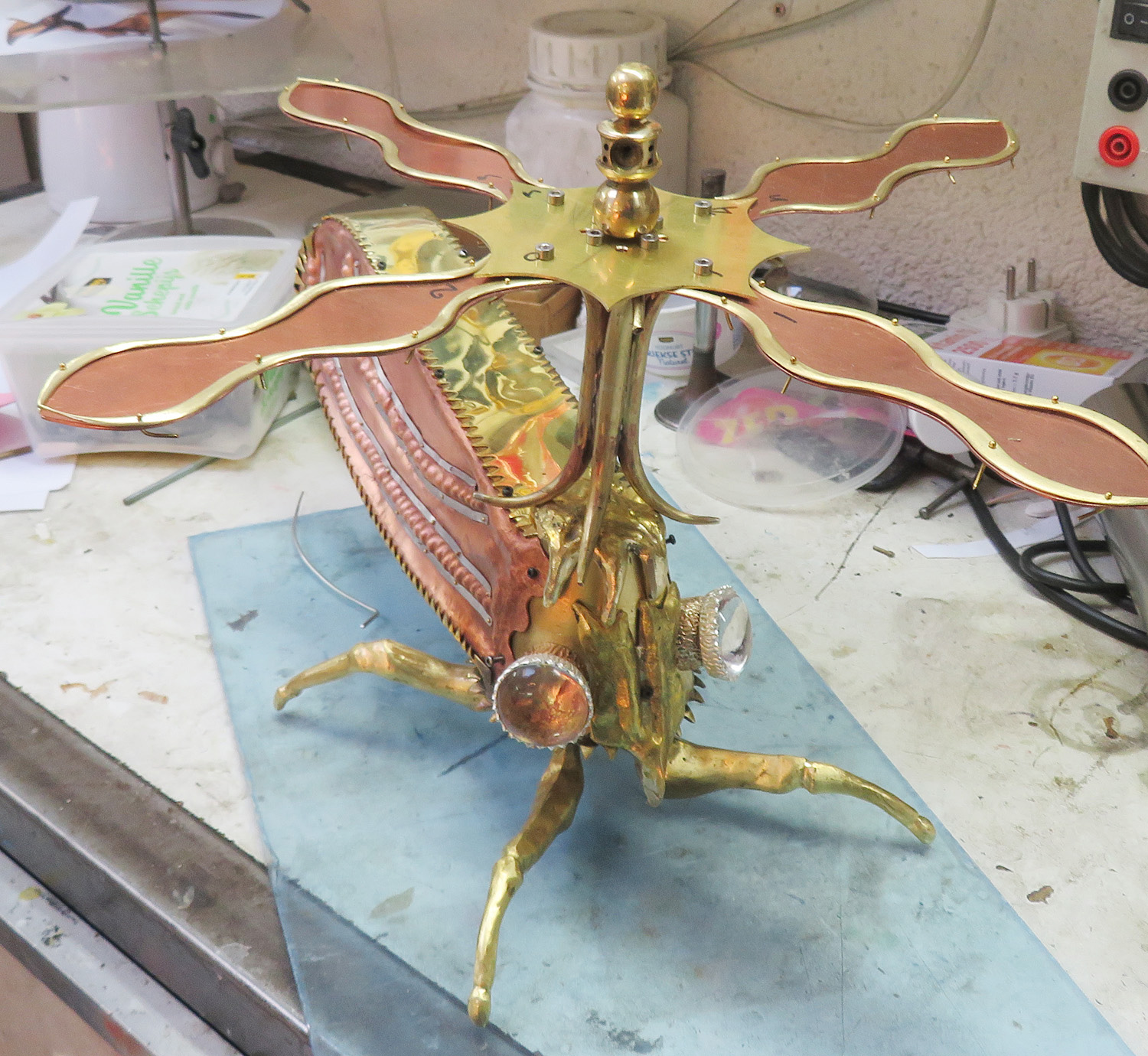

Ecuadorian Treehopper brass surround on heli blades

Then I add brass surround and center portion.
I also added some giant eyes because they got largish eyes in nature.

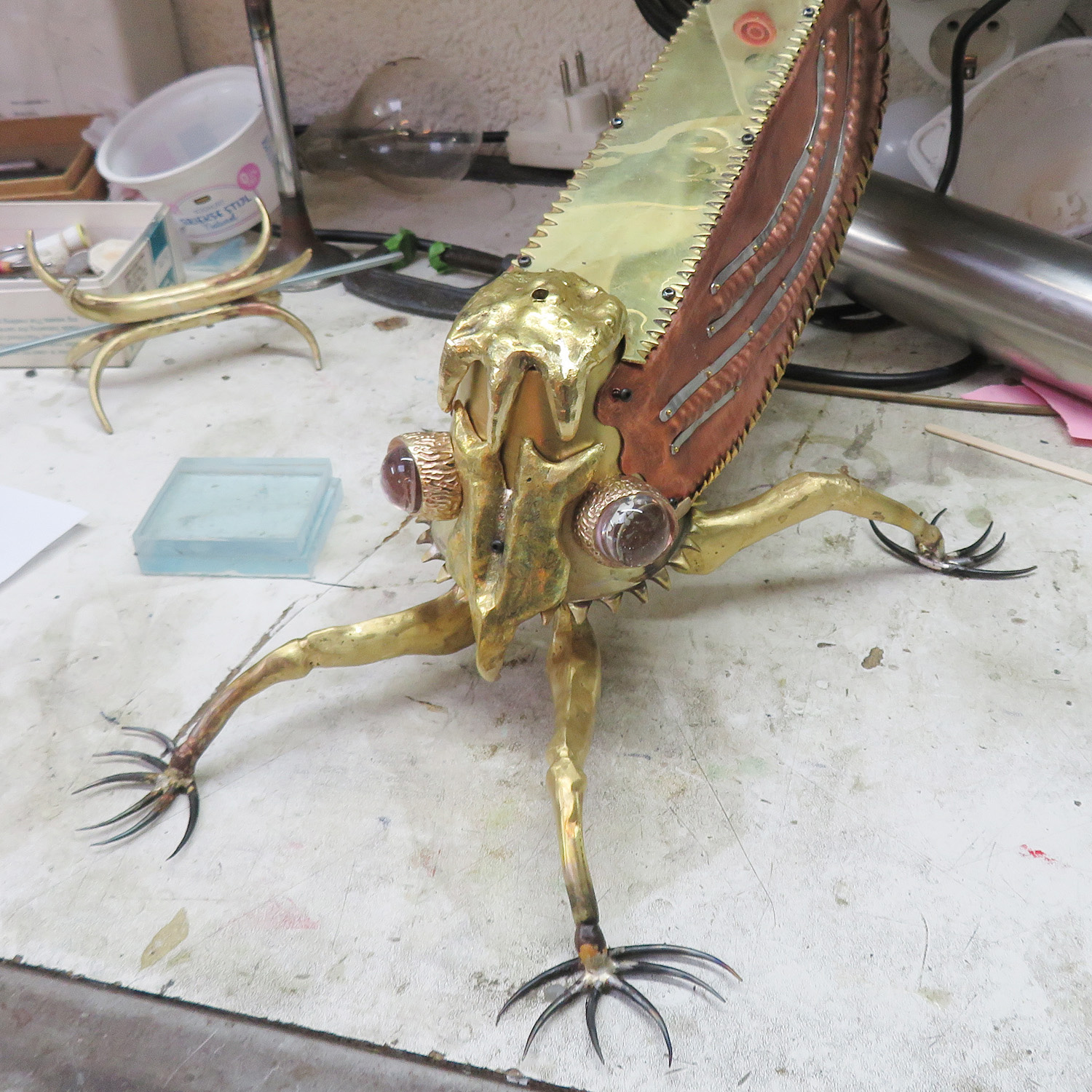

Ecuadorian Treehopper woring on the face

I added some mouth parts and claws and stuff.

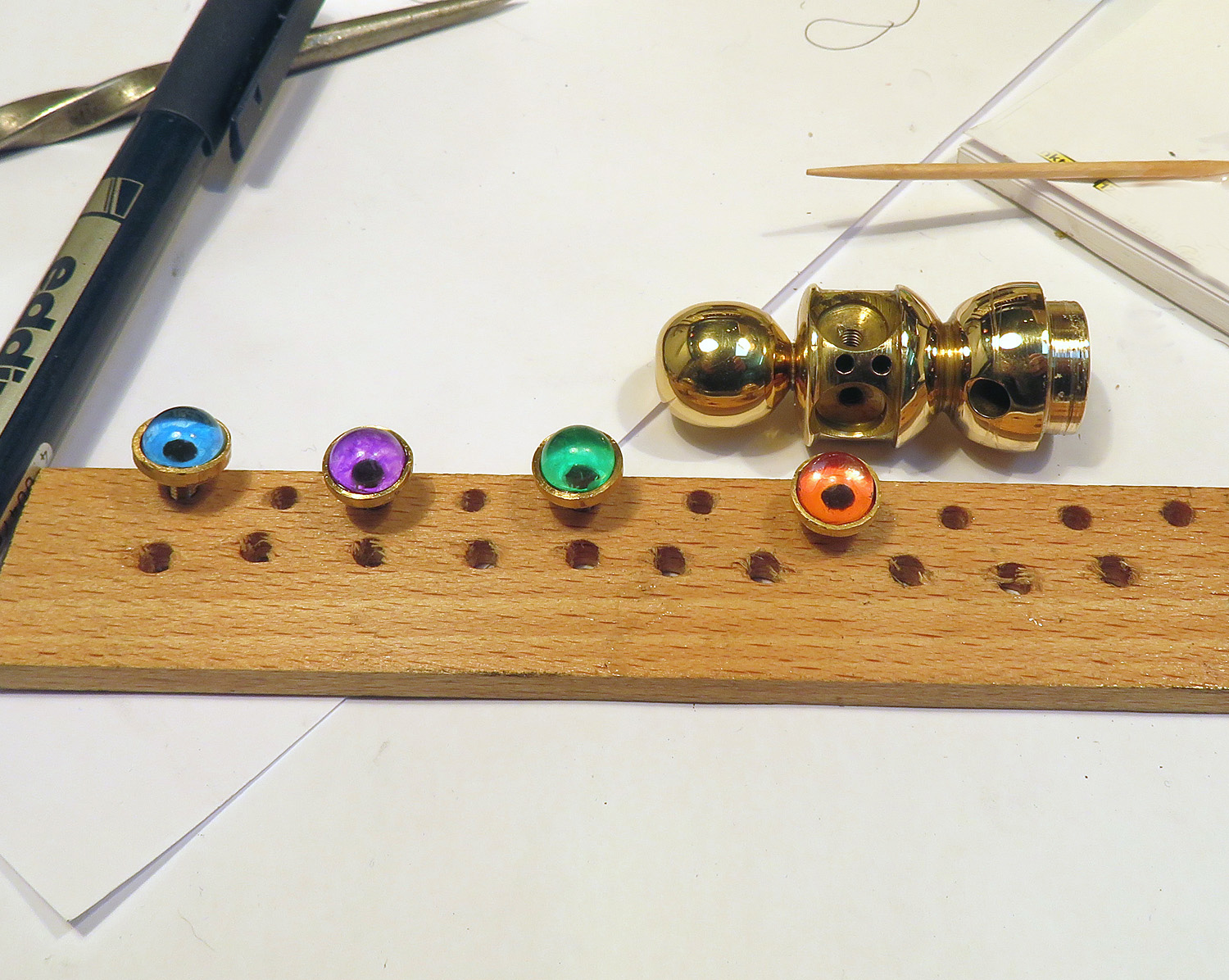

Ecuadorian Treehopper eys for the helicopter

I painted some eyes for the center top part.

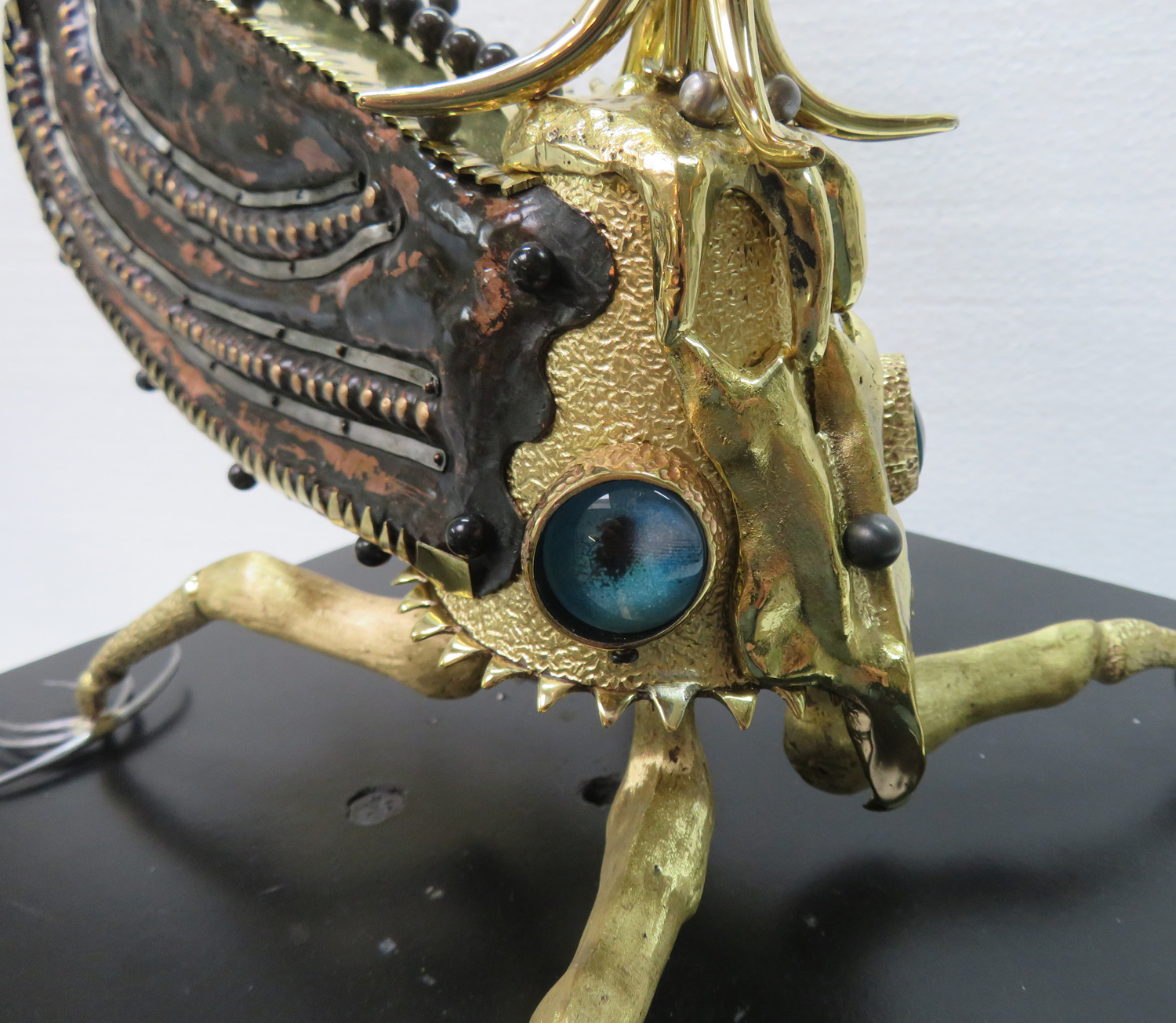

Ecuadorian Treehopper final version of the eyes

Now I'm happy with the new design for the eyes in the head, which is more insect like and prominent.

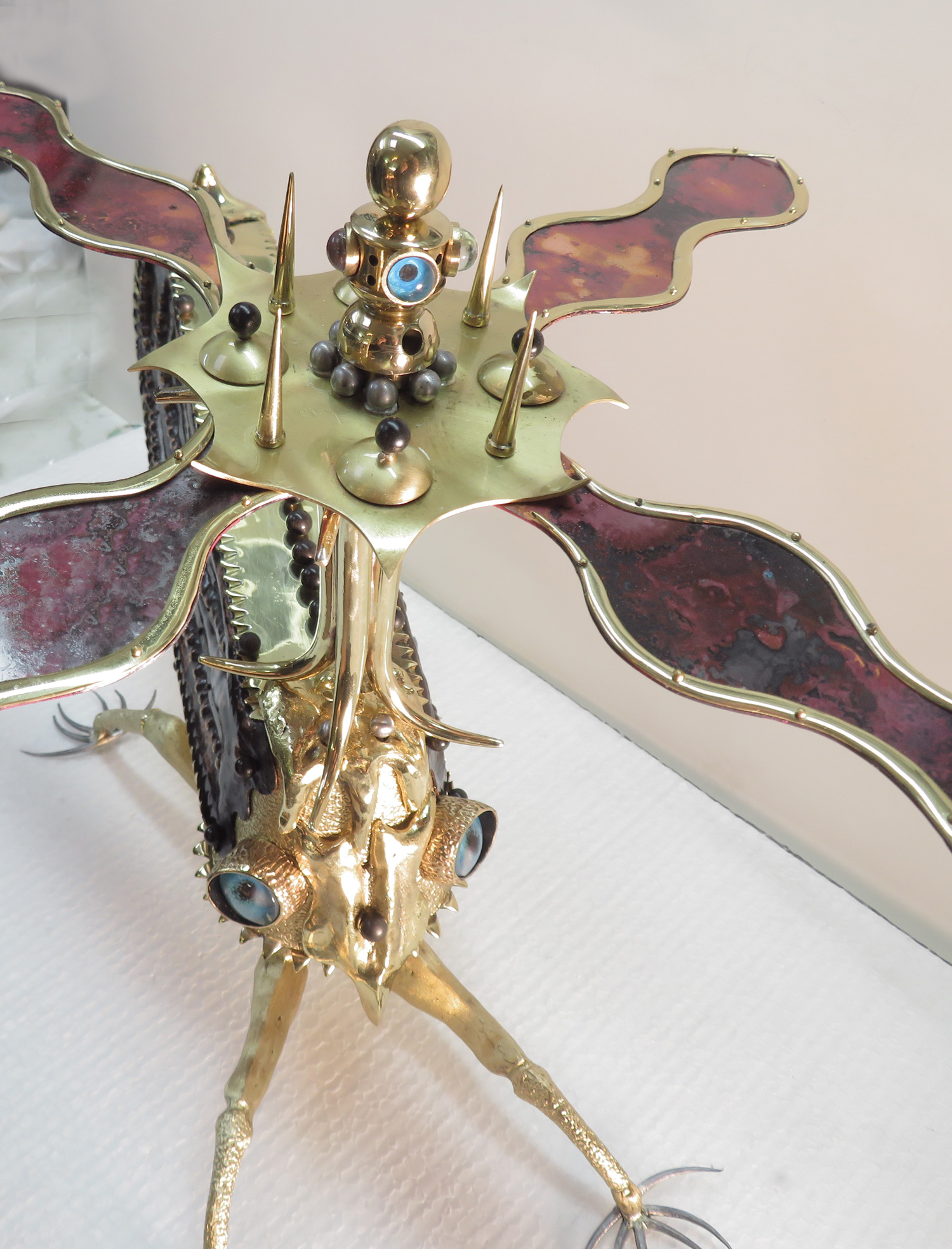

Ecuadorian Treehopper assembled

The eyes in the head also go well with the multiple eyes in the helicopter rotary.

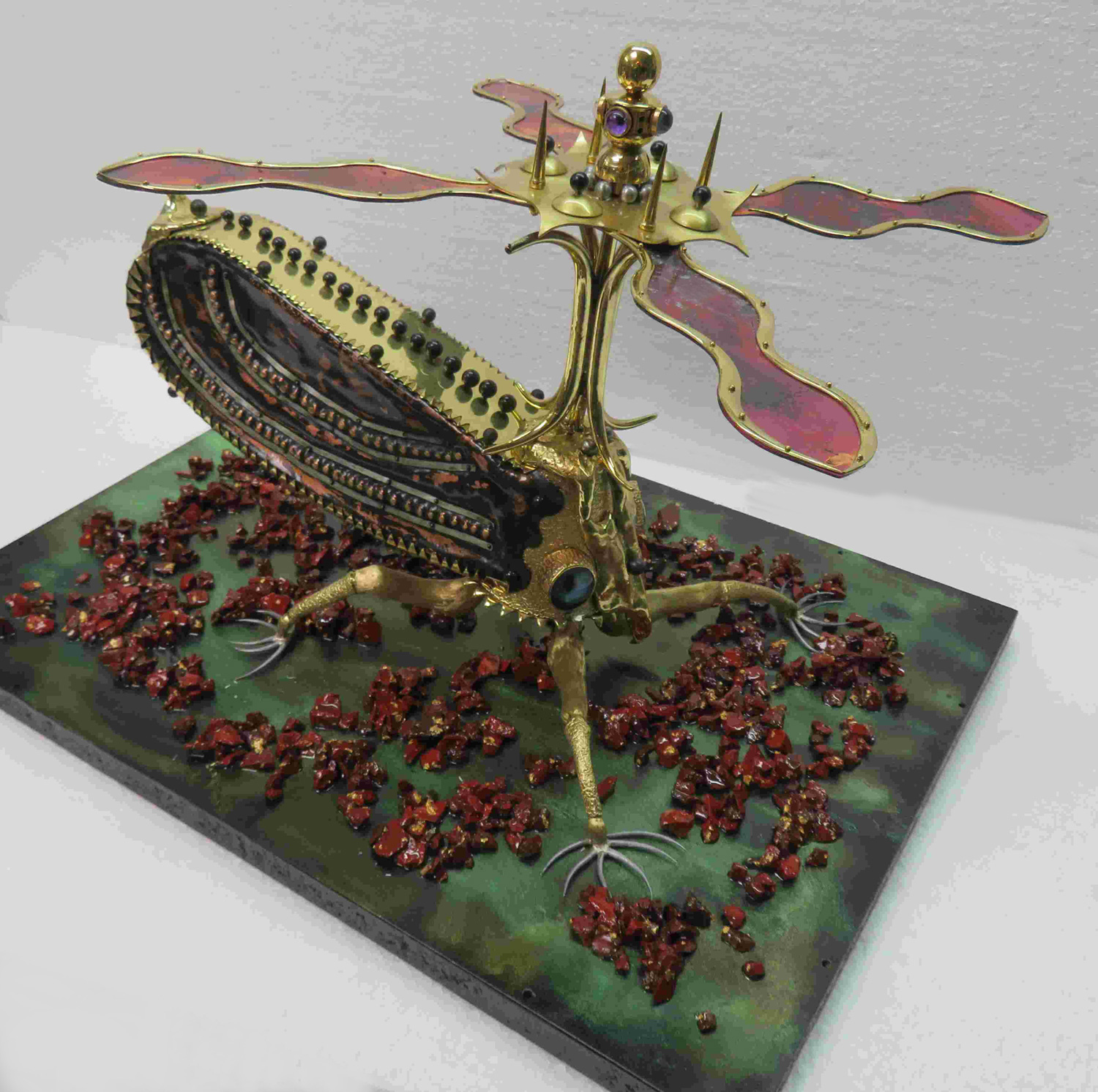

Ecuadorian Treehopper display base
